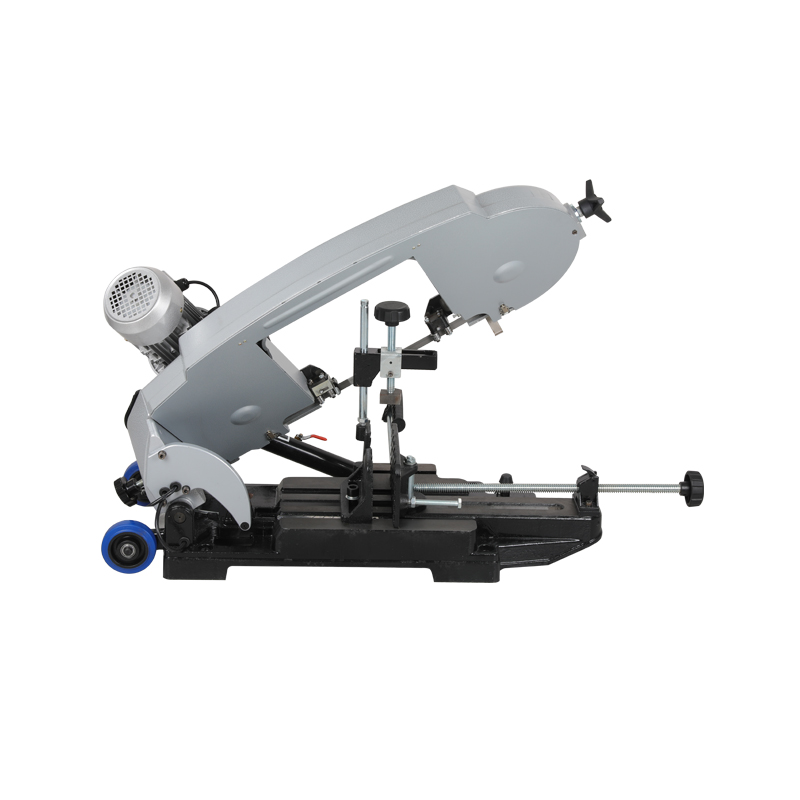

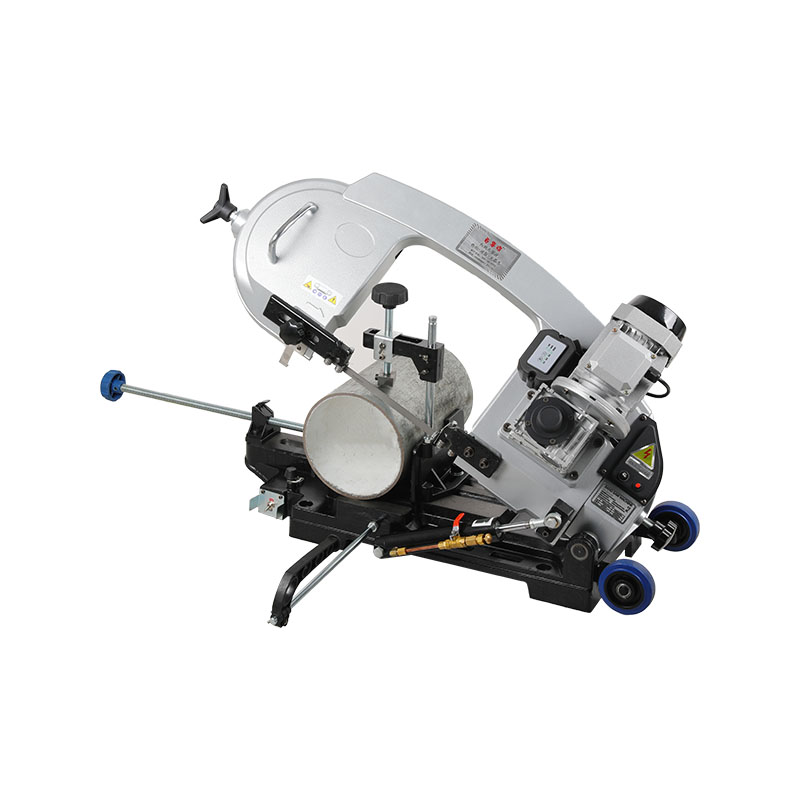

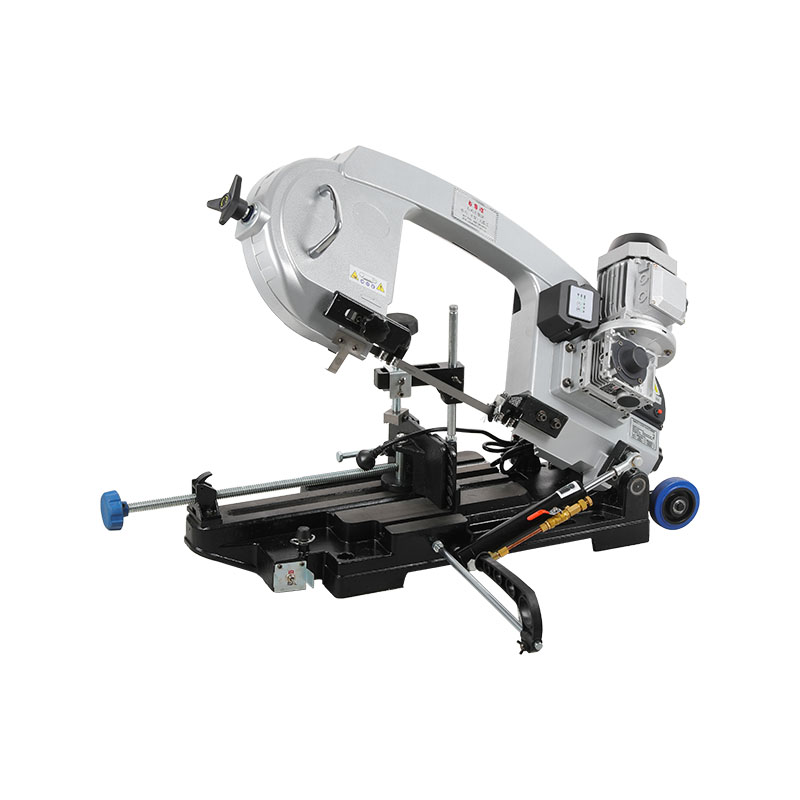

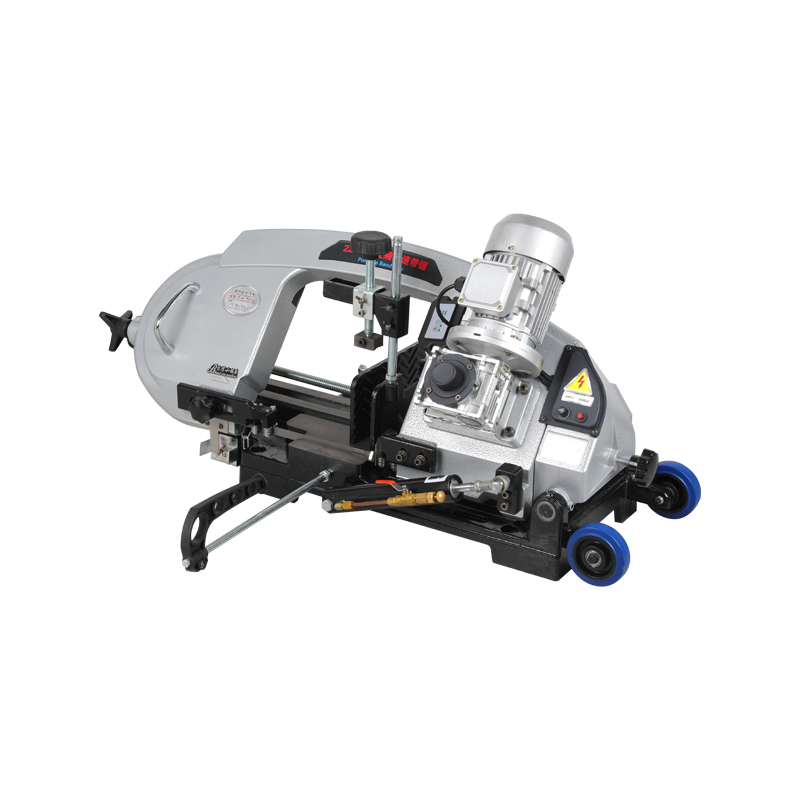

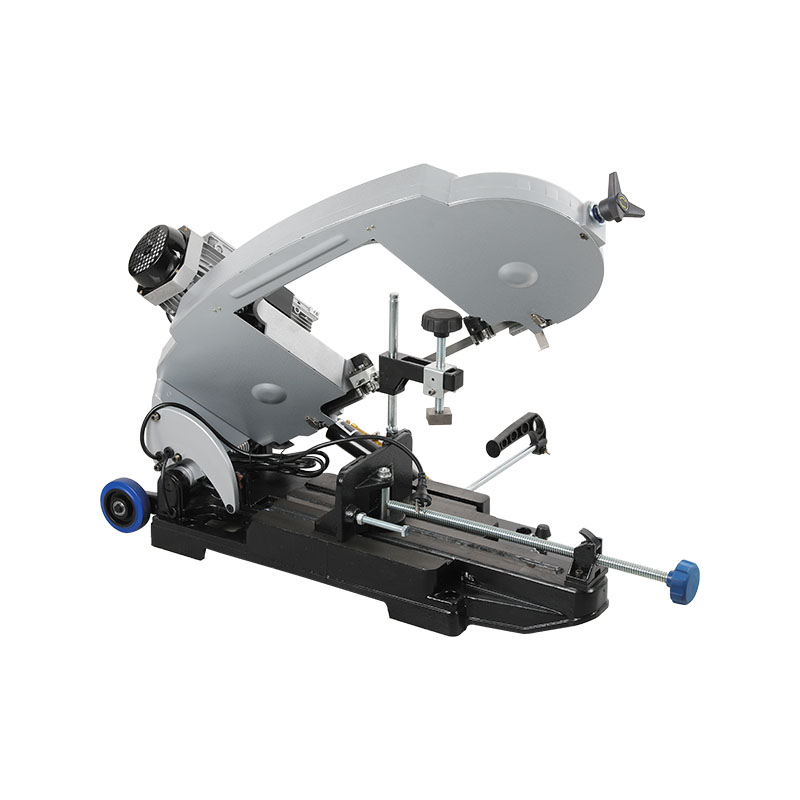

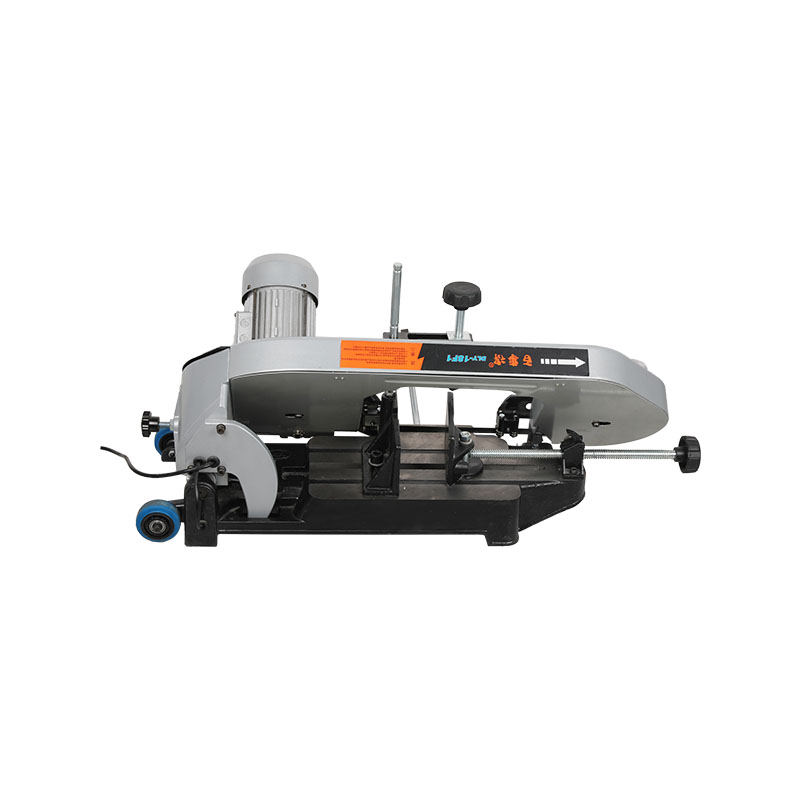

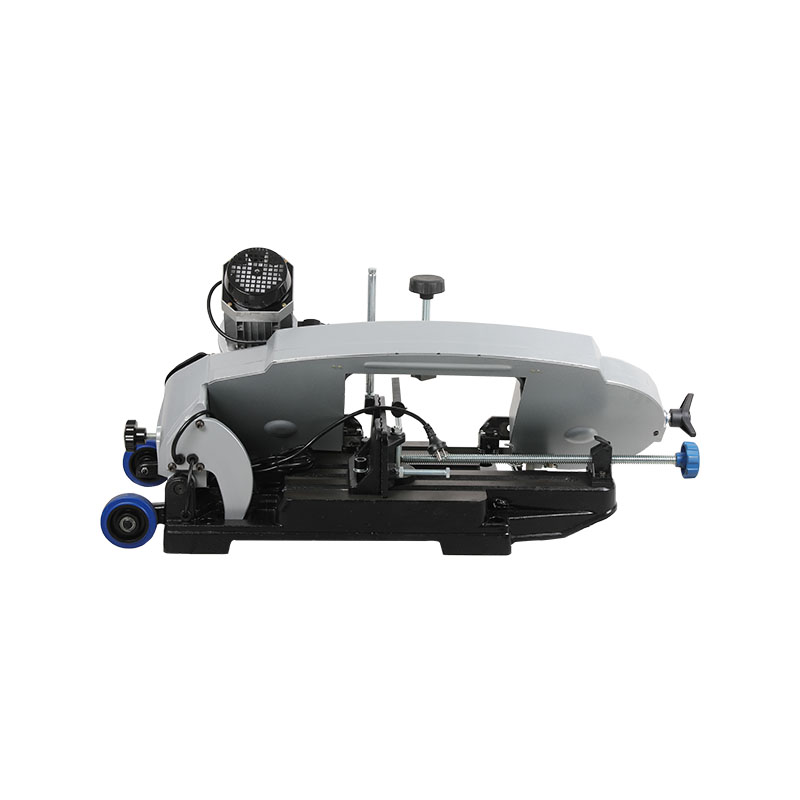

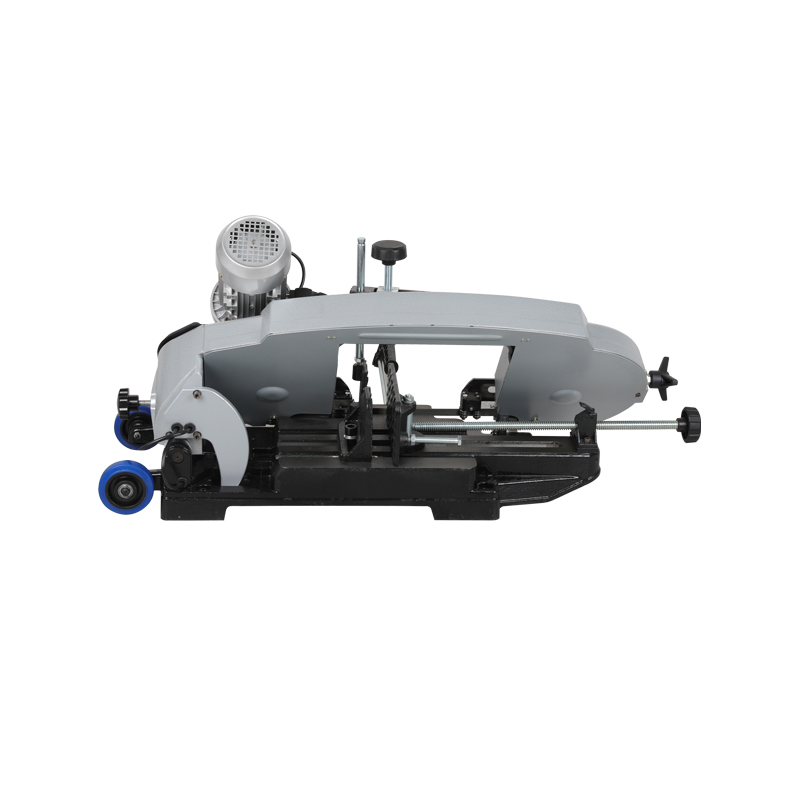

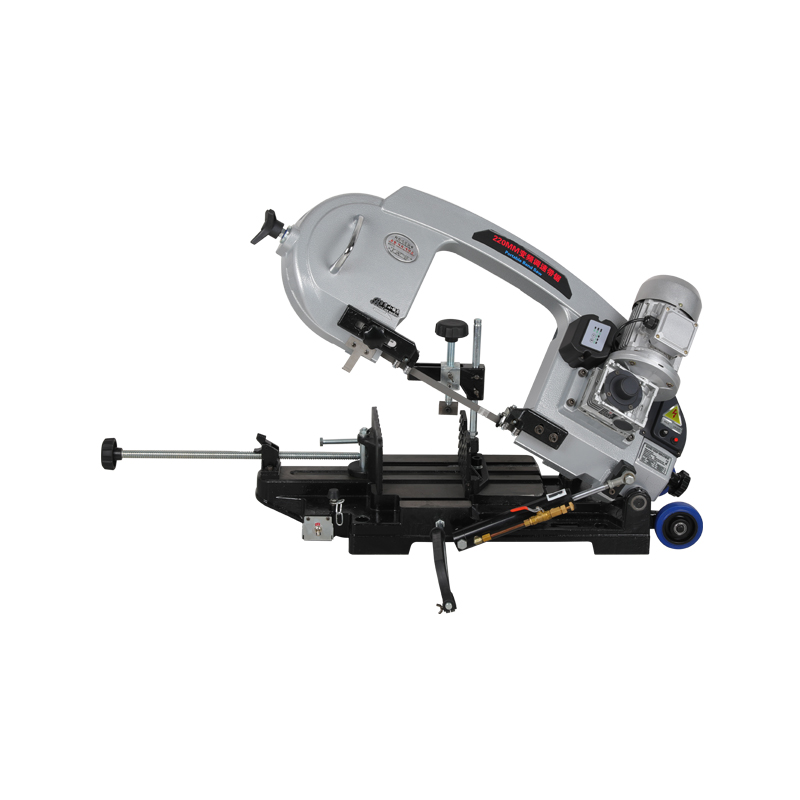

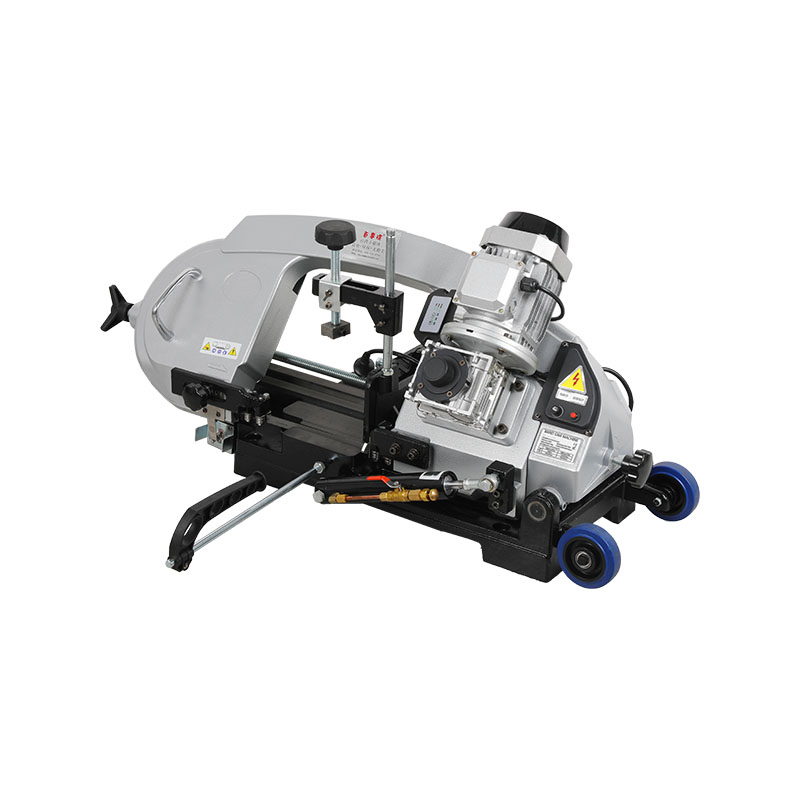

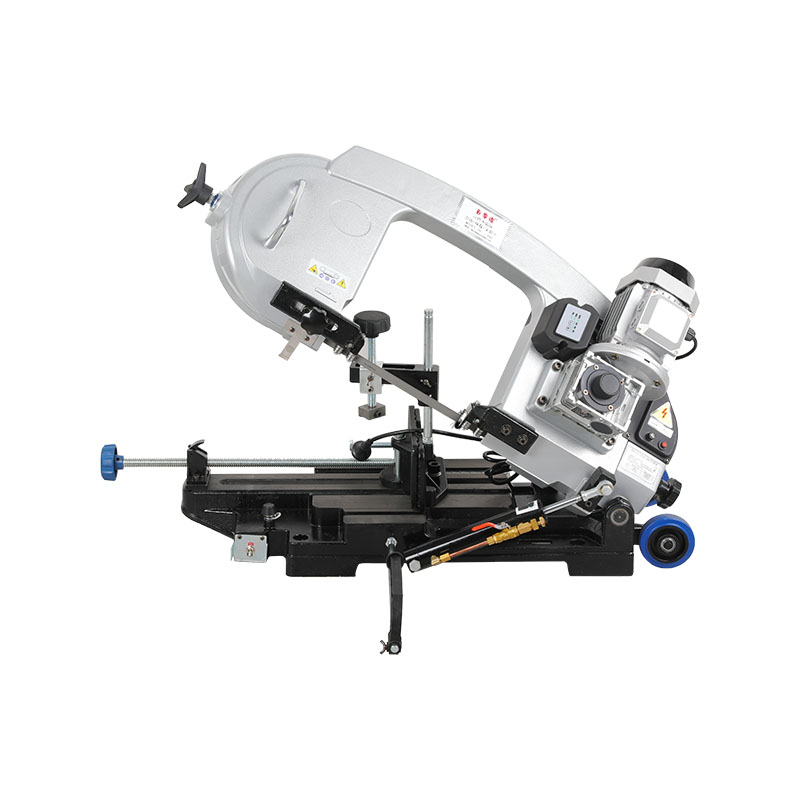

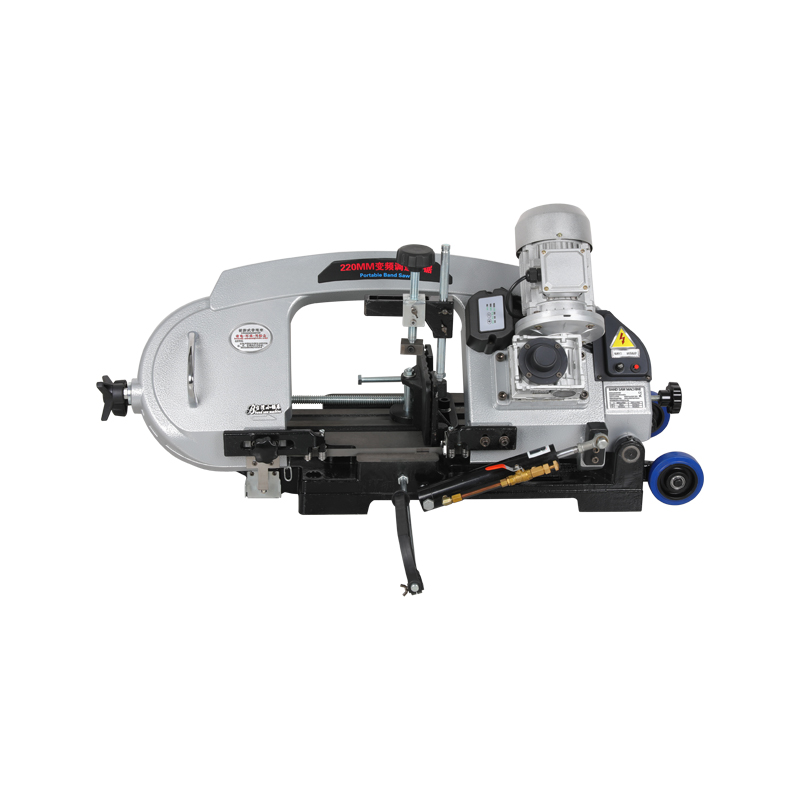

DLY-22F3 9in Frequency Conversion Speed ​​Regulation Horizontal Electric Band Saw (Cylinder Type)

Product Description:
1. Variable frequency 3-speed speed regulation, oil cylinder fine-tuning. It is suitable for cutting different materials and various cutting scenes.
2. The running line speed is only 1/60 of that of the grinder, which is safe and spark-free, and is suitable for operation in the factory area and when there are flammable materials nearby. It can cut metal and non-metal, and can be used for cutting operations in schools, machinery workshops, construction sites, outdoor power installations and other places.
3. No spark, no ozone, no burr, low noise. Compared with the grinding wheel, the cutting surface is smoother, the kerf is less than 1mm, and no secondary processing is required. Cutting steel will not produce sparks, no burrs, and the cutting cuts will be smooth without burns. Suitable for cutting metal, steel, aluminum, composite cable, angle iron, PVC pipe, etc.
4. The industry's best motor design, with controllable power, can withstand any field application.
5. The saw blade has a longer service life and lower cutting cost. The saw blade has a long service life, and one saw blade is equivalent to at least 5 grinding wheels.
6. Mobile and portable, balanced design.
7. design with a Fuse: overload protection.
8. The rear cover completely wraps the saw blade, which is safer than other sawing machines on the market.

Product Details:
1. Horizontal electric band saw uses: processing and cutting a variety of pipe bar material, such as alloy door frame 3D printing model solid aluminum clad iron, plastic lined pipe, and so on. Especially suitable for finishing processing The deviation of the cut surface verticality is less than 0.002mm, and the cut surface is flat without burr. The cutting surface is not discolored, and the cutting range is wide.

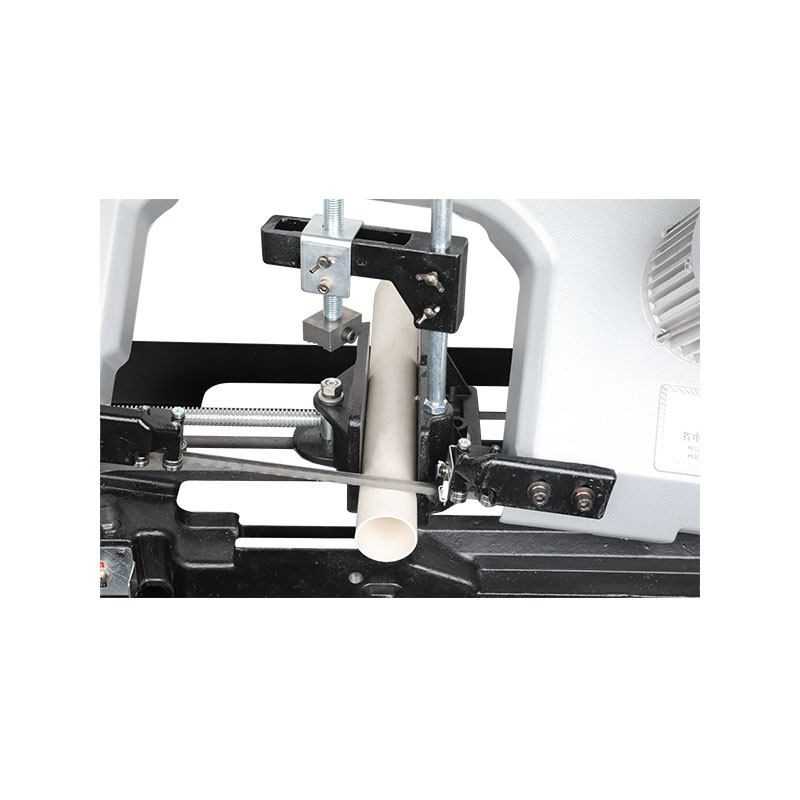

2. Ergonomic design: Upper clamping device is provided to help hold the machine more tightly when cutting large materials. The cylinder is specially designed for cutting thin-walled tubes with speed regulation, and the tube wall is intact without cracking.
3. High quality Good quality: equipped with high quality bimetallic German imported cutting blades, efficient and time-saving cutting. High-quality alloy body Smooth lacquer surface Exudes a matte, high-class feel.

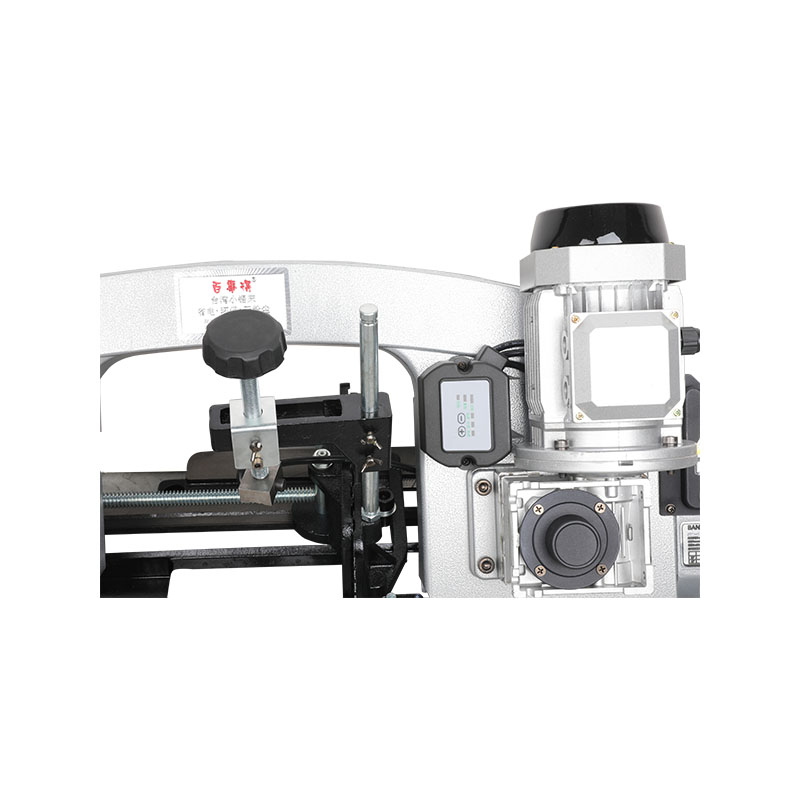

4. environmentally friendly cutting: no sparks, no flying dust, low noise.   5.Installed frequency converter, can be three speed adjustment. Humanized design for cutting different shapes and materials.
6. Portable: handle Chain and wheels on the base, easy to move. Cutting place is not limited, and the power can be automatically cut off after use.
7. Use scenario: they are perfect for industrial environment, save time and effort fast large batch cutting. Also ideal for high-volume finishing cutting. You can also use them to cut bundles, which saves time and money.
8. Equipped with angle table and workpiece fixing device, can cut at an angle of 45 degrees.
9. Cuttable materials: stainless steel, chrome alloy, nickel-based alloy, carbon steel, angle steel, structural steel, aluminum, copper, fiberglass, plastic, cable, wood, etc.! Solid materials to profiles and thin-walled tubes on one machine.
10. Dry cutting, no need to add water.
11. Add oil cylinder, greatly improve the accuracy of cutting thin-walled tube, so that thin-walled tube without deformation, burr-free, cutting without error.

Product Description

0 Degree maximum cutting dimensions: 220*220mm
45 Degree maximum cutting dimensions: 100*100mm
Saw belt dimensions: 1900*16*0.65mm
Bare machine dimensions:  1120*400*540mm

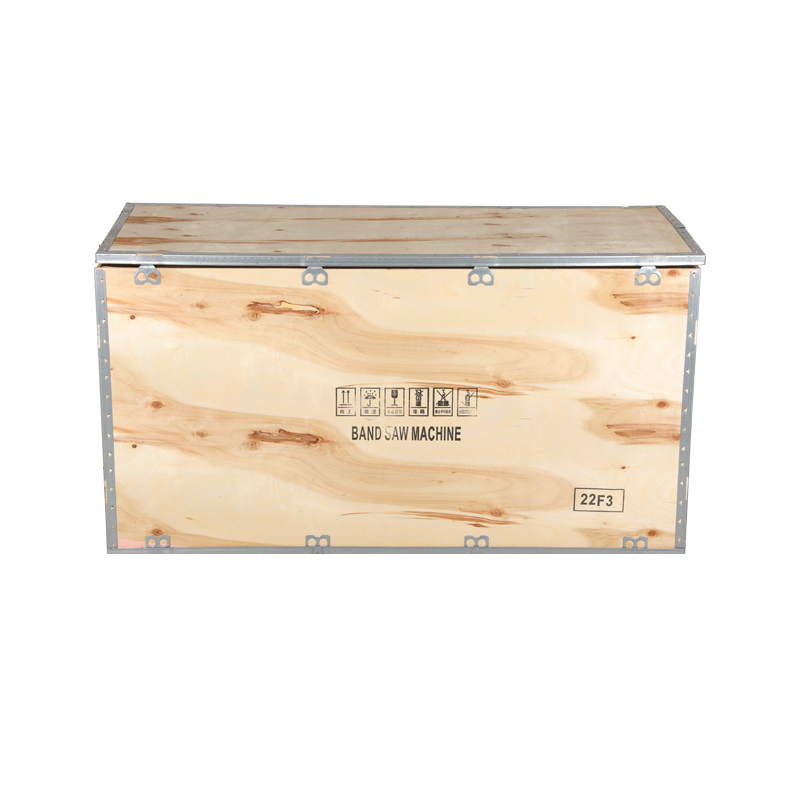

Package dimensions: 1150*430*590mm
Bare machine weight: 87kg;
Gross weight: 102kg
Voltage and power: 220V, 50Hz, 370W
Band saw line speed: 24.5m/min, 40m/min, 57m/min
Standard accessories: One wrench, one brush, one fuse, one leakage protection plug, one length positioning rod, one upper and lower fixing rod for the workpiece, packing box, manual.
