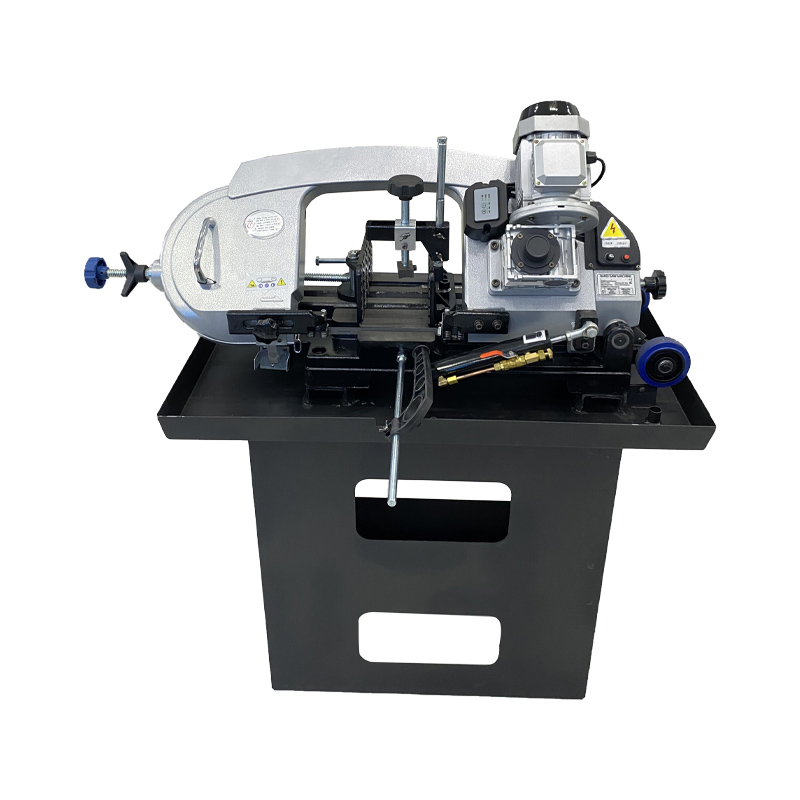

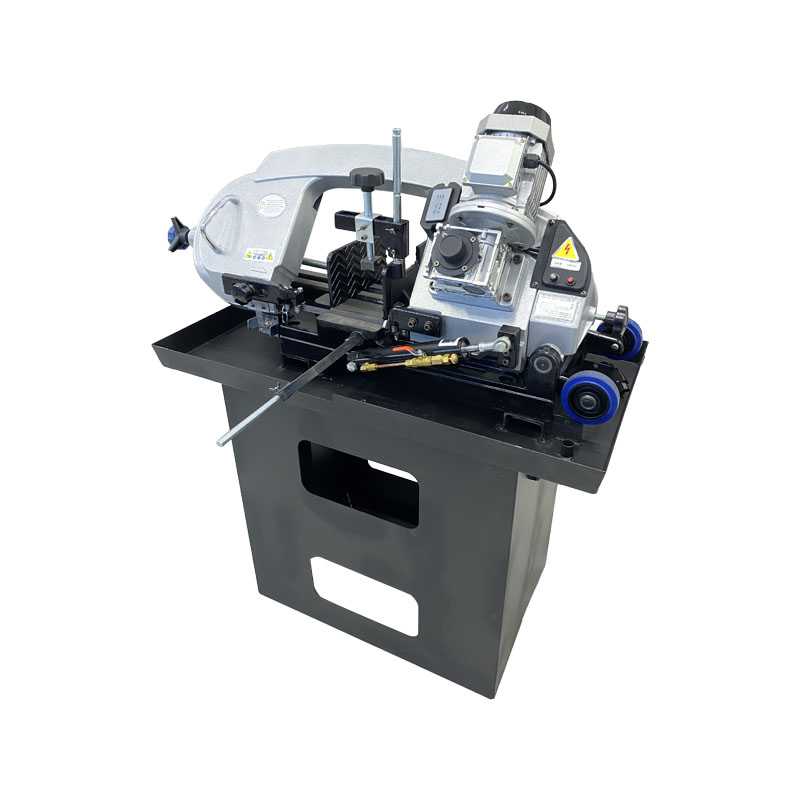

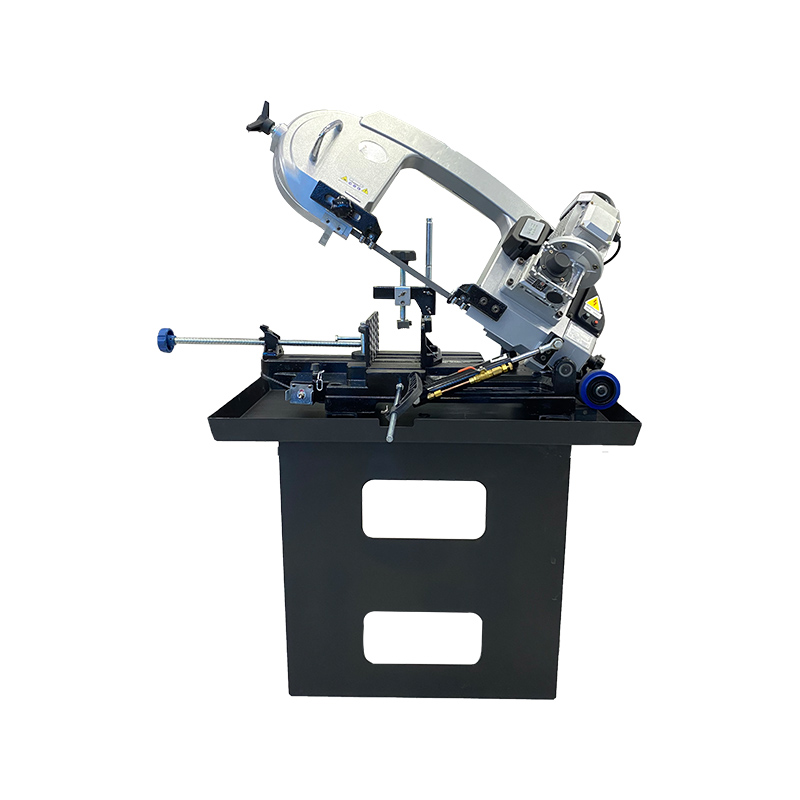

DLY-22F4 9in Hydraulic Cylinder Electric Band Saw (Cylinder Type)

Product Description:
9" Multifunctional Horizontal Band Saw is mobile and portable with a balanced design. Equipped with a frequency converter, oil cylinder and worktable, it is suitable for various personalized cutting scenarios. The inverter has 3 gears for speed regulation. The oil cylinder is designed for cutting thin-walled pipes to ensure that the material is intact and does not burst after cutting. The height of the worktable is increased, which is more convenient when changing materials. Our sawing machines help you to increase cutting efficiency without risk of material damage, easy to operate and very safe to use.
1. Equipped with fuse for overload and power-off protection.
2. The running line speed is only 1/60 of that of the grinder, which is safe and spark-free, and is suitable for operation in the factory area and when there are flammable materials nearby. It can cut metal and non-metal, and can be used for cutting operations in schools, machinery workshops, construction sites, outdoor power installations and other places.
3. No spark, no ozone, no burr, low noise. Compared with the grinding wheel, the cutting surface is smoother, the kerf is less than 1mm, and no secondary flattening or grinding is required. The service life of the saw blade is longer and the cutting cost is lower.

Product Details:
1. Safety: equipped with overload protection device.
2. Environmental protection: silent motor with low noise. Cutting without sparks and dust.
3. High-quality pure copper motor with large torque and strong cutting power.
4. Equipped with upper clamping and fixed-length rods: better fix large and short materials.
5. Elevated worktable, more convenient to change materials.
6. Wide cutting range: 0 degree maximum cutting capacity.

Product Description

0 Degree maximum cutting dimensions: 220*220mm
45 Degree maximum cutting dimensions:  100*100mm
Saw belt dimensions: 1900*16*0.65mm
Bare machine dimensions: 1120*500*1040mm
Machine packing dimensions: 1150*430*590mm
Toolbox packaging dimensions: 920*550*290mm
Bare machine weight: 98kg
Gross weight: 131kg
Voltage and power: 220V, 50Hz, 370W
Band saw line speed: 24.5m/min, 40m/min, 57m/min
Standard accessories: One wrench, one brush, one fuse, one leakage protection plug, one length positioning rod, one upper and lower fixing rod for the workpiece, packing box, manual.
